The main parts of a chair include the seat, backrest, frame, legs or base, armrests and the components that connect them. Although these basic functions are shared by most chairs, the exact structure changes according to the chair type.

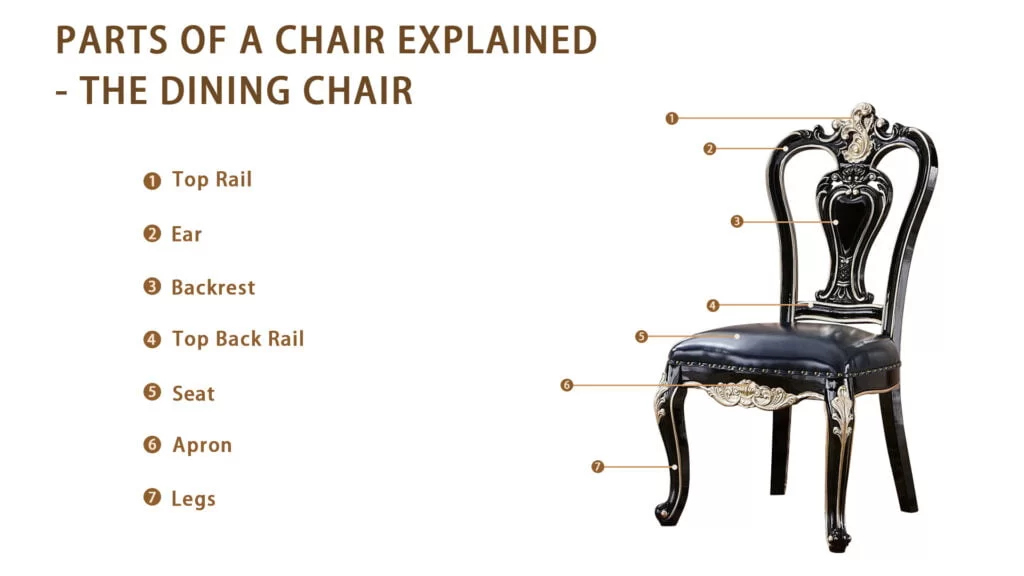

A traditional dining chair may use fixed legs, rails, stiles and an apron. An office chair replaces many of these fixed parts with adjustable components such as a tilt mechanism, gas lift, swivel base and casters.
This guide first explains the basic anatomy of a chair and then examines the main office chair components, their functions and the details buyers should evaluate when comparing products.

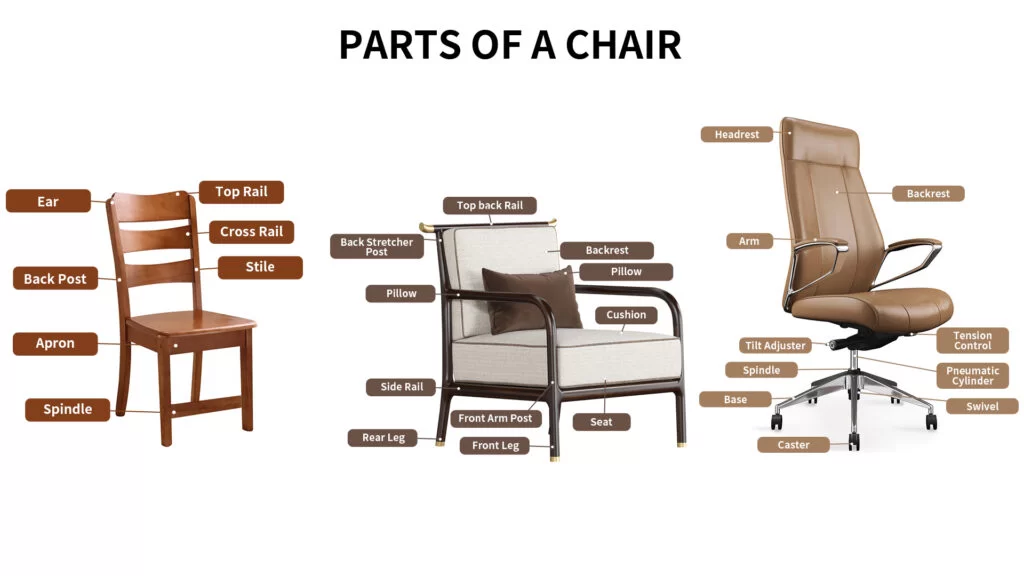

Parts of a Chair Diagram
The diagram below shows the basic structural parts found in many chair designs. Component names may vary slightly between manufacturers, but most chairs contain a sitting surface, back support, structural frame and a system of legs or a base that transfers the user’s weight to the floor.
What Are the Main Parts of a Chair?
| Chair Part | Main Function |
|---|---|
| Seat | Supports the user’s seated weight. |
| Backrest | Supports the lower, middle or upper back. |
| Frame | Connects the chair’s structural components. |
| Legs or base | Transfers the load to the floor and keeps the chair stable. |
| Armrests | Support the forearms and help reduce shoulder strain. |
| Rails and supports | Reinforce fixed chair frames and connect structural parts. |
| Upholstery or cushioning | Provides surface comfort and influences appearance and maintenance. |
Fixed chairs commonly use legs, rails and rigid frames. Modern office chairs add moving and adjustable parts so the chair can accommodate different users, desks and working positions.
What Is the Back of a Chair Called?
The back of a chair is generally called the backrest, chair back or seat back. It is the part positioned behind the seat that supports the user’s back while sitting.
The exact construction depends on the chair type. A traditional wooden chair back may include back posts, rails, stiles, slats or a central splat. An office chair back usually consists of a structural back frame, mesh or upholstered support, lumbar support and, on some models, an adjustable headrest.
In ergonomic office chairs, the backrest may also recline, flex or adjust in height to support different users and sitting positions.

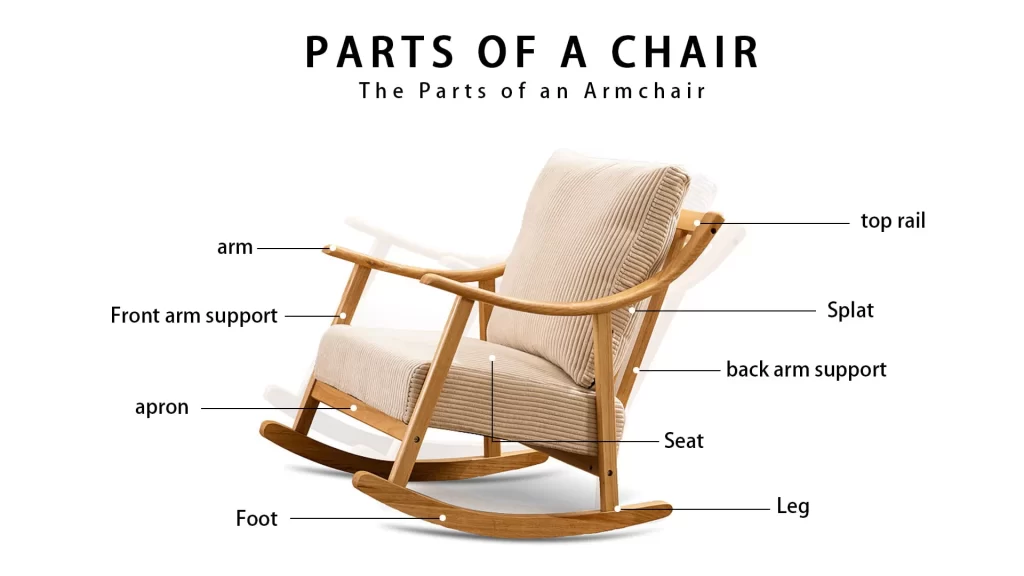

Parts of an Armchair
An armchair is any chair built with fixed or padded arms. The term usually refers to upholstered lounge or accent armchairs, but in commercial settings it also covers executive office armchairs and visitor armchairs. Most armchair parts fall into three groups: the structural frame, the suspension and padding layers, and the visible upholstered surfaces.
| Armchair Part | Description |
|---|---|
| Arms and arm panels | The side structures that support the forearms. Upholstered armchairs use padded arm panels; office armchairs often use molded or cushioned arm pads. |
| Wings | Side extensions at the top of the backrest, found on wingback armchairs, originally designed to shield the sitter from drafts. |
| Back frame and back cushion | The internal frame that shapes the backrest, covered by a fixed or loose back cushion. |
| Seat deck and seat cushion | The platform (deck) that carries the seat cushion, supported by webbing or springs underneath. |
| Webbing and springs | The suspension layer inside the seat and back that provides flexibility and prevents sagging. |
| Apron and skirt | The apron is the front rail below the seat; a skirt is an optional fabric panel that conceals the legs. |
| Legs or base | Wooden or metal legs on traditional armchairs; a swivel base with casters on office armchairs. |
| Upholstery and padding | The foam, batting and outer fabric or leather that form the visible surfaces of the armchair. |
Traditional armchair parts are mostly fixed and are repaired through reupholstery. Office armchairs — such as an executive office chair or a task chair with adjustable armrests — replace the fixed frame with adjustable components, which are covered in detail in the next section.

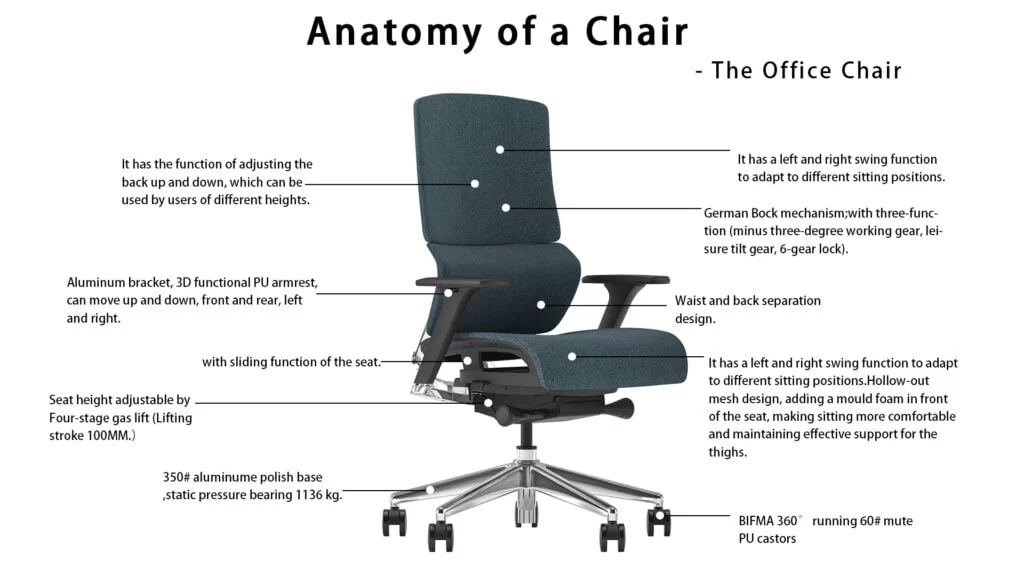

Parts of an Office Chair
Most task chairs and ergonomic office chairs contain the same main component groups, although their adjustment ranges, materials and construction quality may differ.
Headrest
The headrest supports the head and upper neck, particularly when the user reclines. It may be fixed, removable or adjustable in height, angle or depth.
Headrests are common on high-back and executive chairs but are not required for every task-chair application. Buyers should confirm whether the headrest is included as standard or supplied as an optional component.
Backrest
The backrest—also commonly called the back of a chair, chair back or seat back—supports the user’s back and connects to either the seat structure or the chair mechanism. It may use mesh, molded plastic, upholstered foam or a combination of materials.
Depending on the design, the backrest may include height adjustment, recline, tilt locking or flexible sections that respond to movement.
Lumbar Support
Lumbar support is the section designed to support the lower-back curve. It may be molded into the backrest or provided as a separate pad or flexible support structure.
Common options include fixed lumbar contours, height-adjustable supports, depth adjustment and dynamic systems that move with the user.
Armrests
Armrests support the forearms and help users keep their shoulders relaxed. Adjustable armrests are often described according to the number of movement directions they provide.
- 1D armrests: usually adjust in height.
- 2D armrests: adjust in height plus one additional direction.
- 3D armrests: commonly adjust in height, depth and angle or width.
- 4D armrests: offer four adjustment directions, depending on the specific design.
The actual movements should always be listed in the specification. A “3D” or “4D” label alone does not explain which directions the armrest can move.
Seat and Seat Pan
The seat pan supports most of the user’s seated weight. It normally includes a structural shell, mesh or foam support, upholstery and an underside connection to the chair mechanism.
Important seat characteristics include usable width, effective depth, front-edge shape, foam firmness and upholstery durability. Some office chairs also include a seat slider that allows the effective seat depth to be adjusted.
For measurement methods and project specifications, see the desk chair dimensions guide for office buyers.
Tilt Mechanism
The tilt mechanism is installed beneath the seat and connects the upper chair structure to the gas lift. It controls functions such as reclining, tilt tension, seat angle and position locking.
Common office chair mechanism types include:
- Basic tilt mechanism: allows the seat and backrest to tilt together.
- Synchro-tilt mechanism: coordinates seat and backrest movement at different ratios.
- Multi-lock mechanism: allows the recline position to be locked at several points.
- Self-weight mechanism: adjusts recline resistance according to the user’s weight or applied force.
The mechanism receives repeated loads during sitting, swiveling and reclining, making its construction, adjustment controls and test performance important procurement considerations.
Gas Lift Cylinder
The gas lift cylinder sits between the chair mechanism and the base. It allows the user to raise or lower the seat by operating the height-adjustment lever.
Gas lifts are available in different lengths, classes and travel ranges. Buyers should confirm the resulting minimum and maximum seat height and compatibility with the selected base and mechanism.
For help adjusting the chair after assembly, see the guide to setting the proper office chair height.
Five-Star Base
The five-star base distributes the chair’s load and provides mounting points for the casters. Common materials include nylon, aluminum and steel.
Buyers should compare the base diameter, material, load capacity, surface finish and compatibility with the gas lift and casters.
Casters
Casters are the wheels installed at the ends of the chair base. They allow the chair to move while maintaining contact with the floor.
- Hard casters: commonly used on carpeted surfaces.
- Soft or polyurethane casters: commonly selected for hard floors and quieter movement.
- Braking casters: restrict movement when loaded, unloaded or manually locked, depending on the design.
The caster stem, wheel diameter and load rating must match the chair base and intended floor conditions.
Additional Office Chair Components
| Component | Function | What Buyers Should Check |
|---|---|---|
| Seat shell | Forms the structural base beneath the cushion or mesh. | Material, reinforcement and attachment points. |
| Back frame | Supports the backrest mesh, upholstery or cushion. | Rigidity, flexibility and connection strength. |
| Foam | Provides cushioning in the seat or backrest. | Density, thickness, firmness and compression recovery. |
| Mesh or upholstery | Forms the main contact surface. | Abrasion resistance, cleaning needs and color consistency. |
| Control levers | Operate the height, tilt and locking functions. | Position, labeling, ease of use and secure installation. |
| Fasteners | Connect the seat, backrest, armrests and mechanism. | Size, tightening requirements and resistance to loosening. |
| Decorative covers | Conceal joints, hardware and internal structures. | Fit, finish and resistance to cracking during assembly. |
For more information about mesh, fabric, leather, foam, plastic and metal components, see the guide to office chair materials.
How Office Chair Parts Affect Product Quality
Stability
The mechanism, gas lift, base, casters and structural fasteners work together to keep the chair stable. Loose connections or incompatible components can cause movement, noise or uneven operation.
Adjustability
Adjustment depends on the combined design of the seat, mechanism, backrest, lumbar support and armrests. A long feature list is valuable only when the controls are accessible and the available ranges suit the intended users.
Durability
Moving office chair parts receive repeated loads. Mechanisms, armrests, casters and backrest connections should therefore be evaluated according to material strength, assembly quality and applicable test requirements.
Maintenance and Replacement
Modular chair construction can make it easier to replace casters, gas lifts, arm pads and other wear components. Commercial buyers should confirm which parts are replaceable and whether compatible spare parts will remain available.
Office Chair Parts Checklist for Buyers
- Request an office chair component list and dimensional drawing.
- Confirm the mechanism type and all available adjustment functions.
- Verify the gas lift specification and resulting seat-height range.
- Check the base material, diameter and caster type.
- Confirm the actual movement directions of the armrests.
- Review the seat, backrest, upholstery, mesh and foam specifications.
- Ask which office chair parts can be replaced independently.
- Approve an assembled sample before confirming a bulk order.
Frequently Asked Questions
What are the main parts of a chair?
The main parts of a chair are the seat, backrest, frame, legs or base, armrests and connecting supports. Upholstered chairs may also include foam, fabric, leather or mesh surfaces.
What is the back of a chair called?
The back of a chair is usually called the backrest, chair back or seat back. Traditional chairs may divide it into parts such as back posts, rails, slats or a central splat, while office chairs often use a back frame with mesh, upholstery and lumbar support.
What are the main parts of an office chair?
The main office chair parts include the seat, backrest, lumbar support, armrests, tilt mechanism, gas lift cylinder, five-star base and casters. High-back chairs may also include an adjustable headrest.
Which office chair parts usually wear first?
Casters, arm pads, upholstery, control levers and moving mechanism parts receive frequent use. Fasteners and structural connections may also require inspection if the chair develops movement or noise.
Can office chair parts be replaced?
Many casters, gas lifts, arm pads and selected structural components can be replaced. However, compatibility is not universal, so replacement parts must match the original mounting dimensions and load requirements.
Is the swivel a separate office chair part?
Swiveling is normally created by the connection between the mechanism, gas lift and base rather than by a separate visible swivel component.
What are the parts of an armchair?
The main parts of an armchair are the arms or arm panels, back frame, back cushion, seat deck and seat cushion, internal webbing or springs, apron, legs and the outer upholstery. Wingback armchairs add wings beside the backrest, while office armchairs replace fixed legs with a mechanism, gas lift, swivel base and casters.
Understand the Complete Chair Structure
Understanding the parts of a chair makes it easier to compare construction, adjustment, durability and maintenance requirements. For commercial projects, buyers should evaluate how the components work together instead of comparing only the chair’s external appearance.
